 12W |  24W | |
|---|---|---|
| System input power (W) | 12 | 24 |
| Nominal luminous Flux (Lm) | 840 | 1680 |
| Input voltage range (V-AC/Hz) | 220-240/50-60 | 220-240/50-60 |
| Power factor | 0.74 | 0.85 |
| LED module type | With separate ballast | With separate ballast |
| LED module structure | Integrated | Integrated |
| Light Source | COB LED | COB LED |
| Number of LEDs (pcs) | 1 | 1 |
| Nominal color temperature (°K) | 3000-6000 | 3000-6000 |
| Color rendering index (Ra) | 80 | 80 |
| Lumen maintenance factor at 1000 hours | 98% | 98% |
| Lumen maintenance group at 6000 hours | A | A |
| Light distribution angle (degrees) | 45 | 45 |
| Cut Size(mm) | 100 | 145 |

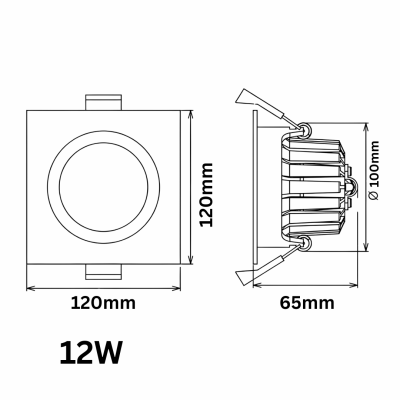

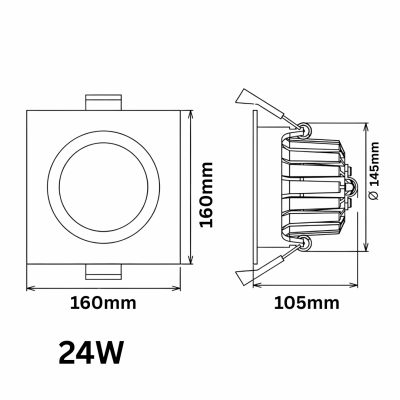

| Dimension(mm) | 120*120*65 | 160*160*105 |
| Material (PC) | Aluminum | Aluminum |
| Ingress Protection (IP) | 20 | 20 |
| Weight (Kg) | 0.55 | 0.67 |
| Rated life in ambient temperature 25 °C | 50000 (hrs) | 50000 (hrs) |
| Rated life in ambient temperature 45 °C | 30000(hrs) | 30000(hrs) |
| Maximum junction temperature LED (°C) | 125 | 125 |
| Humidity range (%) | 10~90RH | 10~90RH |
| Ambient temperature range (°C) | -20~ +50 | -20~ +50 |
| Product Code | MB012-528SQ | MB024-528SQ |
