 8W |  15W |  30W |  40W | |
|---|---|---|---|---|
| System input power (W) | 8 | 15 | 30 | 40 |
| Nominal luminous Flux (Lm) | 750 | 1450 | 2850 | 3800 |
| Input voltage range (V-AC/Hz) | 85~265/50~60 | 85~265/50~60 | 85~265/50~60 | 85~265/50~60 |
| Power factor | 0.72 | 0.75 | 0.89 | 0.92 |
| LED module type | With separate ballast | With separate ballast | With separate ballast | With separate ballast |
| LED module structure | Integrated | Integrated | Integrated | Integrated |
| Light Source | COB LED | COB LED | COB LED | COB LED |
| Number of LEDs (pcs) | 1 | 1 | 1 | 1 |
| Nominal color temperature (°K) | 2800-6200 | 2800-6200 | 2800-6200 | 2800-6200 |
| Color rendering index (Ra) | 80 | 80 | 80 | 80 |
| Lumen maintenance factor at 1000 hours | 98% | 98% | 98% | 98% |
| Lumen maintenance group at 6000 hours | A | A | A | A |
| Light distribution angle (degrees) | 24 | 24 | 24 | 24 |

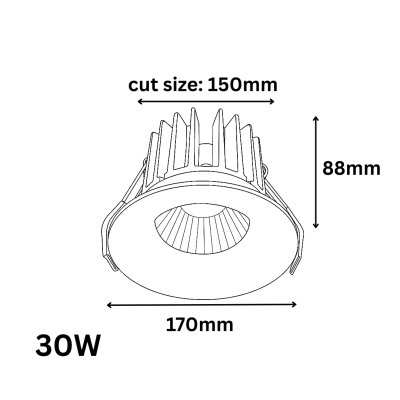

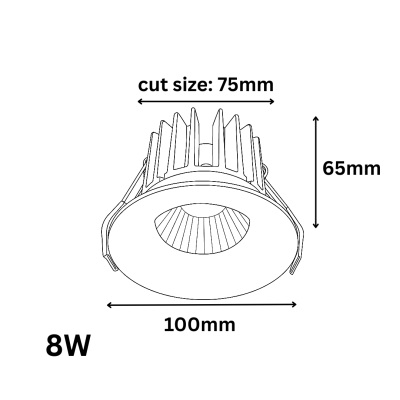

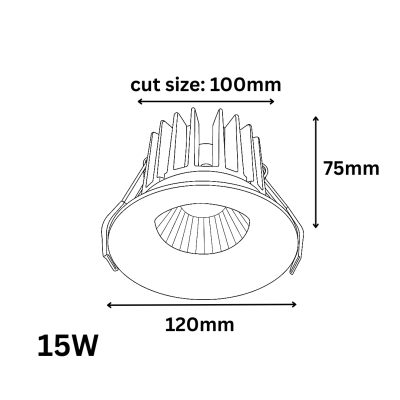

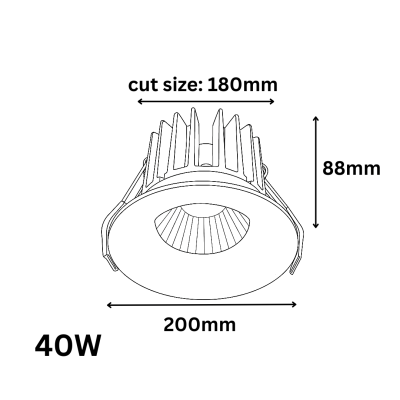

| Cut Size(mm) | 75 | 100 | 150 | 180 |
| Dimension(mm) | 100*65 | 120*75 | 170*88 | 200*88 |
| Material (PC) | Aluminum | Aluminum | Aluminum | Aluminum |
| Ingress Protection (IP) | 55 | 55 | 55 | 55 |
| Weight (Kg) | 0.8 | 0.14 | 0.26 | 0.57 |
| Rated life in ambient temperature 25 °C | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) | 50000 (hrs) |
| Rated life in ambient temperature 45 °C | 35000 (hrs) | 35000 (hrs) | 35000 (hrs) | 35000 (hrs) |
| Maximum junction temperature LED (°C) | 120 | 120 | 120 | 120 |
| Humidity range (%) | 10~90RH | 10~90RH | 10~90RH | 10~90RH |
| Ambient temperature range (°C) | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 | -20 ~ +45 |
| Product Code | MBD020-8W | MBD020-15W | MBD020-30W | MBD020-40W |
