| MBCLC100024 24W | Edge:55mm | MBDLD100024 24W | Edge:80mm | MBDLD100048 48W | Edge:80mm | MBELE100024 24W | Edge:90mm | MBELE100048 48W | Edge:90mm | MBPLP100024 24W | Edge:120mm | MBPLP100048 48W | Edge:120mm | |
|---|---|---|---|---|---|---|---|
| System input power (W) | 24W | 24W | 48W | 24W | 48W | 24W | 48W |
| Nominal system luminous efficiency (Lm/W) | 85 lm/W | 85 lm/W | 85 lm/W | 85 lm/W | 85 lm/W | 85 lm/W | 85 lm/W |

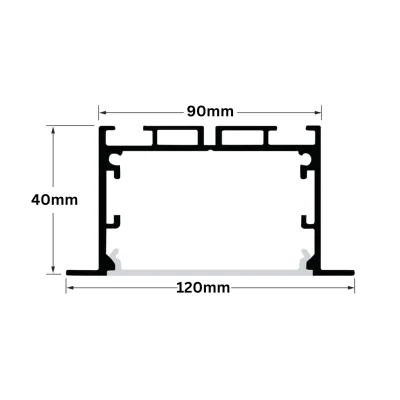

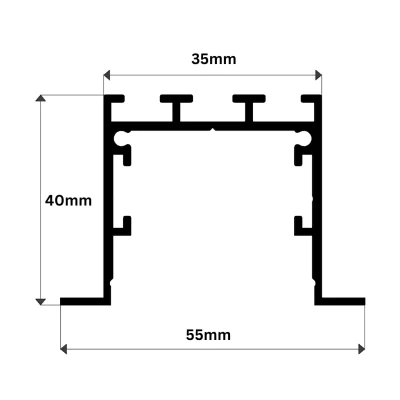

| Dimension(mm) | Edge:55 / Width:35 / Height:40 | Edge:80 / Width:60 / Height:40 | Edge:80 / Width:60 / Height:40 | Edge:90 / Width:70 / Height:40 | Edge:90 / Width:70 / Height:40 | Edge:120 / Width:90 / Height:40 | Edge:120 / Width:90 / Height:40 |
| Cut Size(mm) | Length:∞ / Width:40 / Height:55 | Length:∞ / Width:65 / Height:55 | Length:∞ / Width:65 / Height:55 | Length:∞ / Width:75 / Height:55 | Length:∞ / Width:75 / Height:55 | Length:∞ / Width:100 / Height:55 | Length:∞ / Width:100 / Height:55 |
| Light distribution angle (degrees) | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Ingress Protection (IP) | 42 | 42 | 42 | 42 | 42 | 42 | 42 |
| Color Temperature | Warm-Natural-Cool | Warm-Natural-Cool | Warm-Natural-Cool | Warm-Natural-Cool | Warm-Natural-Cool | Warm-Natural-Cool | Warm-Natural-Cool |
| Input voltage range (V-AC/Hz) | AC200_250V/50_60Hz | AC200_250V/50_60Hz | AC200_250V/50_60Hz | AC200_250V/50_60Hz | AC200_250V/50_60Hz | AC200_250V/50_60Hz | AC200_250V/50_60Hz |
| Charactricity | High Lumen / Dimmable | High Lumen / Dimmable | High Lumen / Dimmable | High Lumen / Dimmable | High Lumen / Dimmable | High Lumen / Dimmable | High Lumen / Dimmable |
| LED module type | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
| Body | White/Black | White/Black | White/Black | White/Black | White/Black | White/Black | White/Black |
| Color rendering index (Ra) | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Ambient temperature range (°C) | -20~ +50 | -20~ +50 | -20~ +50 | -20~ +50 | -20~ +50 | -20~ +50 | -20~ +50 |
| Lumen maintenance group at 6000 hours | A | A | A | A | A | A | A |
| Lumen Maintenance | L70B10 | L70B10 | L70B10 | L70B10 | L70B10 | L70B10 | L70B10 |
| Power factor | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 |
| LED Module Life Time | 30000h | 30000h | 30000h | 30000h | 30000h | 30000h | 30000h |
| Material (PC) | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Product Code | MBCLC100024 | MBDLD100024 | MBDLD100048 | MBELE100024 | MBELE100048 | MBPLP100024 | MBPLP100048 |
